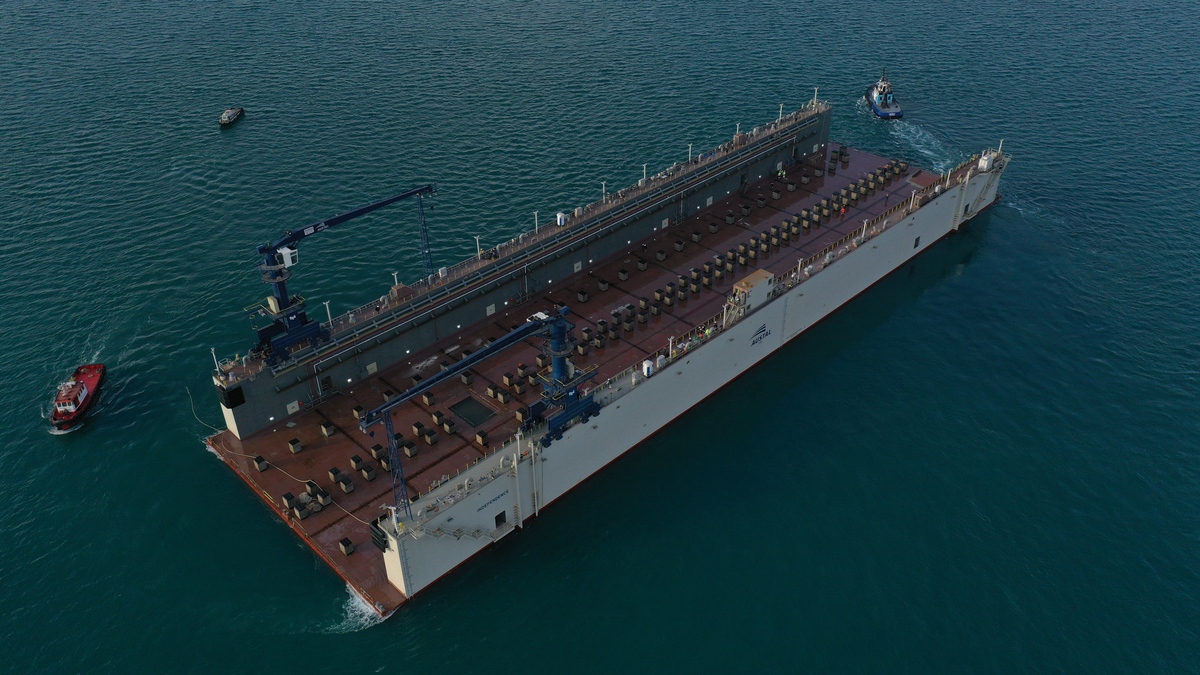

9.000 TONNES LIFTING FLOATING DOCK

GENERAL INFORMATION
Project No
NB-224
Built For
AUSTAL LLC, USA
Delivery
2023
Classification Society
ABS
Class Notation
+A1 Floating Dry Dock CPS IHM
MAIN DIMENSIONS
Overall Lenght
162.00 m
Overall Beam
47.00 m
Wingwall Width
4.00 m
Clear Width between Fenders
36.60 m
Overall Depth
13.00 m
Max. Design Draft
11.10 m
Pontoon Depth at Centerline
3.10 m
Pontoon Depth at Wing Wall
2.90 m
TONNAGE, SPEED, RANGE
Lifting Capacities
9000 Tonnes
Surfacing time
120 minutes
MACHINERY
Gen/Set
2x Cummins QSK19-DM ENGINE + 2X Stamford HCM 634 ALTERNATOR 565 kWe, 3x480 VAC, 3 Phase, 60 Hz, IMO Tier III Compliant
Deck Cranes
2x Travelling Pedestal Cranes SWL : 6.0 T @ 28 m SWL : 10.0 T @ 14 m
De-Watering Pumps
16X 27.1 m3/h @ 5.45 m Head / 1170 Rpm Submersible Pumps
Fire Pumps
2x 5.7 m3/h @ 102 m, 3576 Rpm Centrifigual Pumps
Jockey Pumps
2x 0.2 m3/h @ 102 m , 3516 Rpm Centrifigual Pumps
Rain Water Pumps
2x 31.2 GPM @ 64.9 FT Head / Vertical Submersible Pumps
CHT Discharge Pumps
2x 110 GPM @ 59.9 FT Head / Vertical Dry Tape
25 HP Capstans
8x 25 HP Electric Powered Capstans
40 HP Capstans
4x 40 HP Electric Powered Capstans
